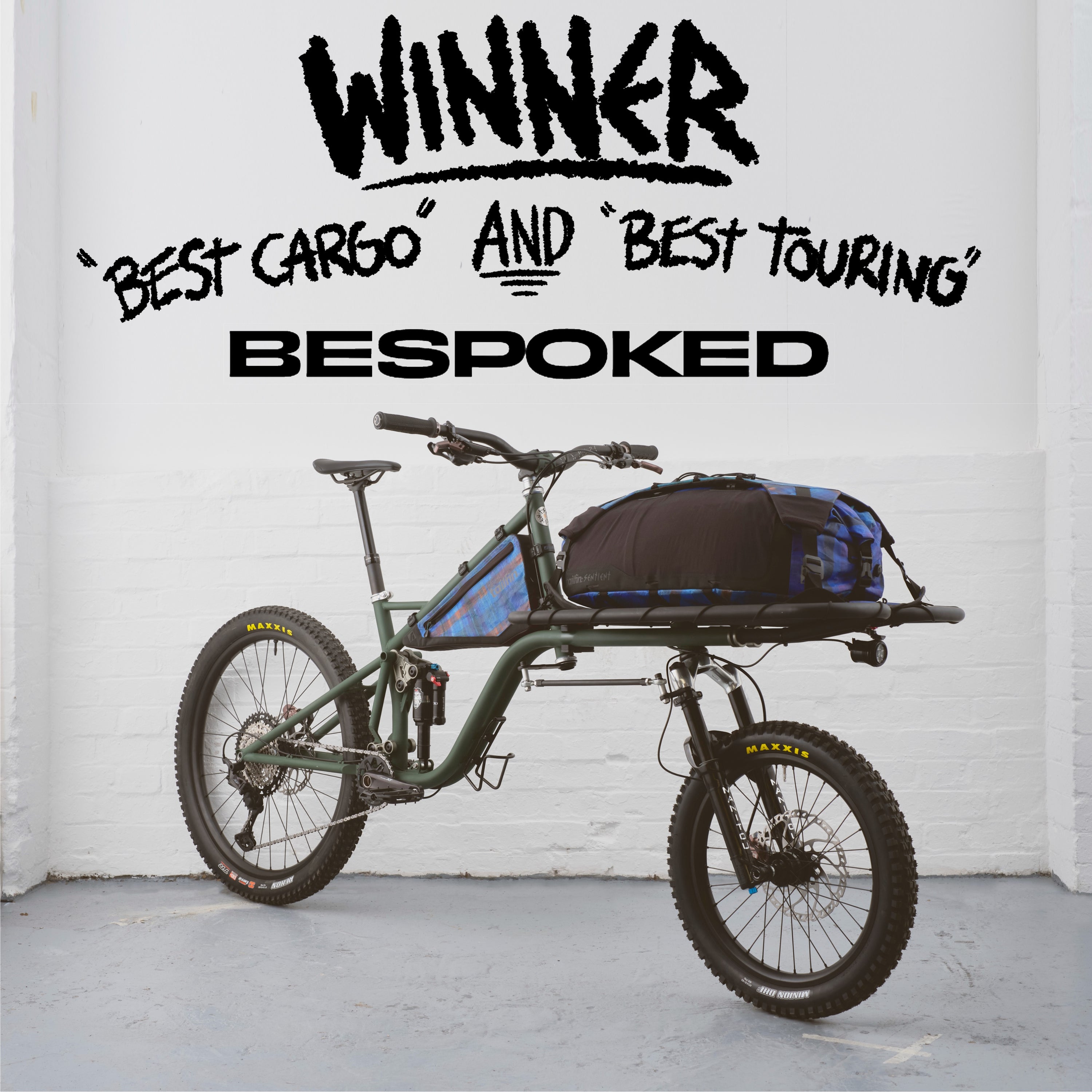

AWARD WINNING DESIGN

Two separate judges, two separate awards, one bike.
That’s pretty cool.
Photo- adam gasson
Bespoked London 2026

Kitchen sink

carry whatever you want to wherever you want, without traditional bikepacking limits. From delicate photography equipment to cumbersome climbing gear or worn out canine companions.

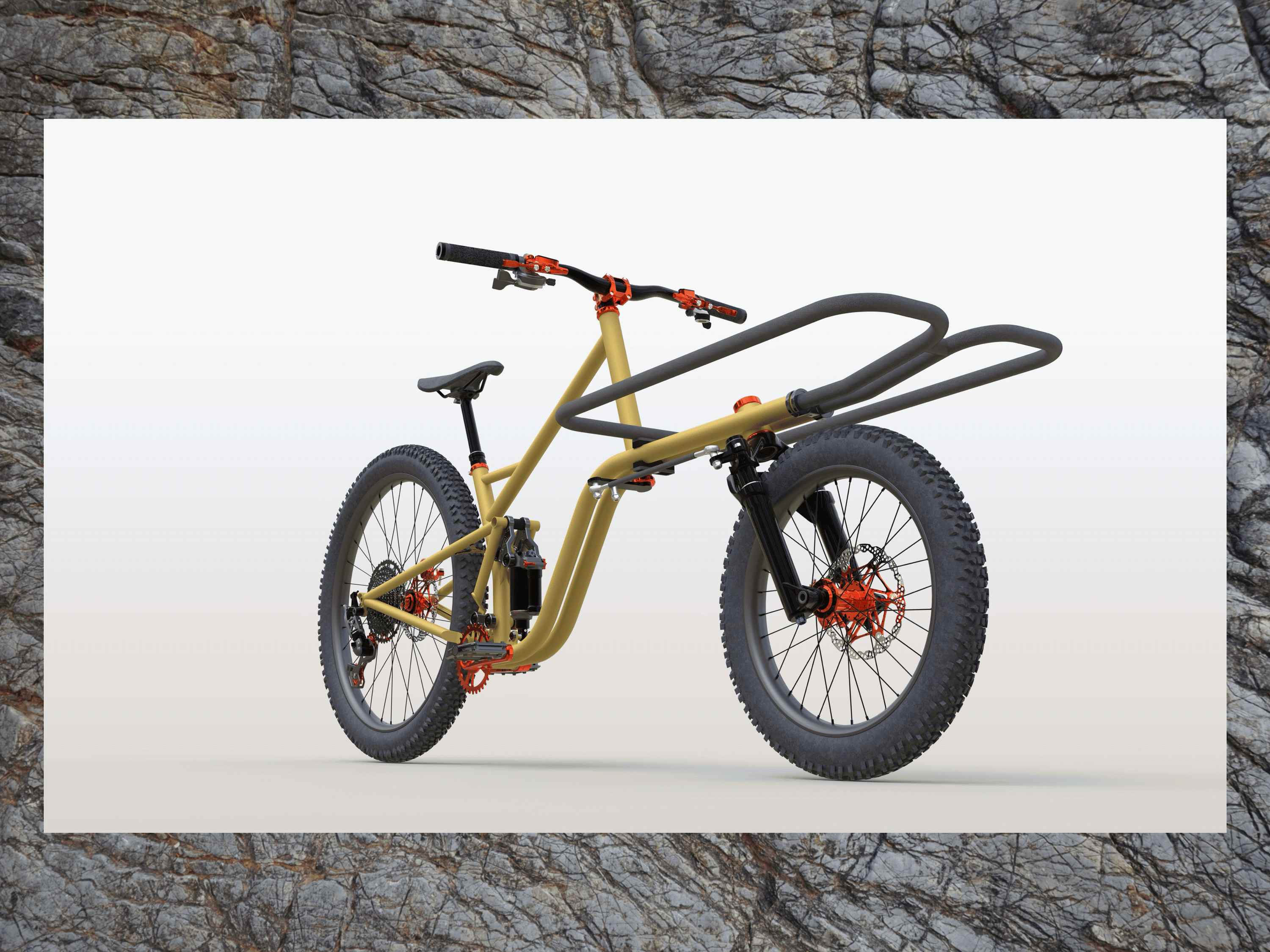

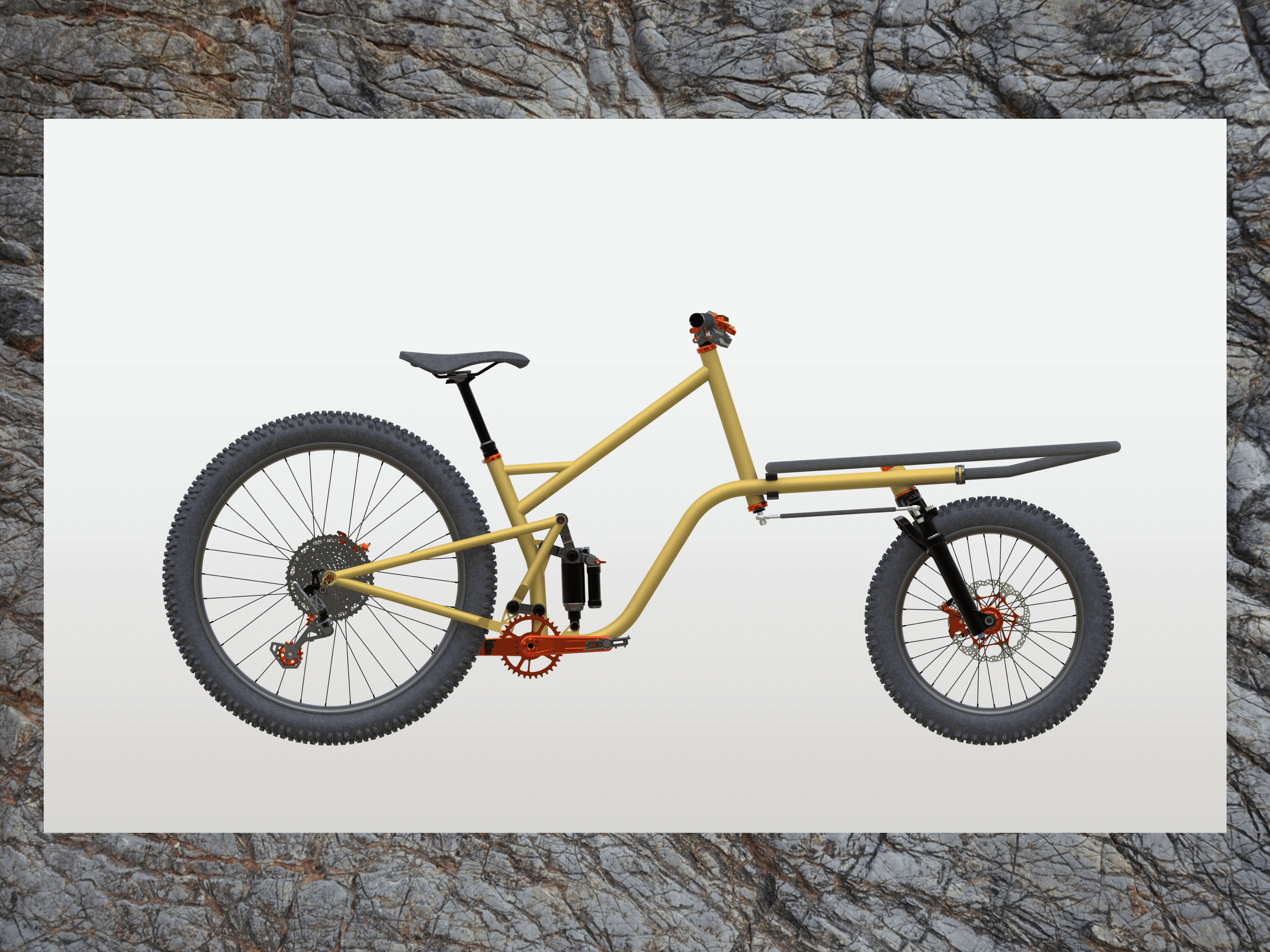

GET HUCKED

designed from the ground up around manitou suspension technology which allows a huge amount of control over tuning, and different spec options too.

giving the bike a 65 degree headtube angle allows the 120mm fork to work efficiently, while also enabling more confident control and comfort.

ANTI DIVE

the rear linkage gives 165mm of rear wheel travel and has been designed to keep the front platform level while preventing it from diving.

it’s designed to use 10 of the same Enduro BEARING with an extended inner race so there’s no faff sourcing replacements AND NO SILLY PROPIETARY SPACERS TO LOSE.

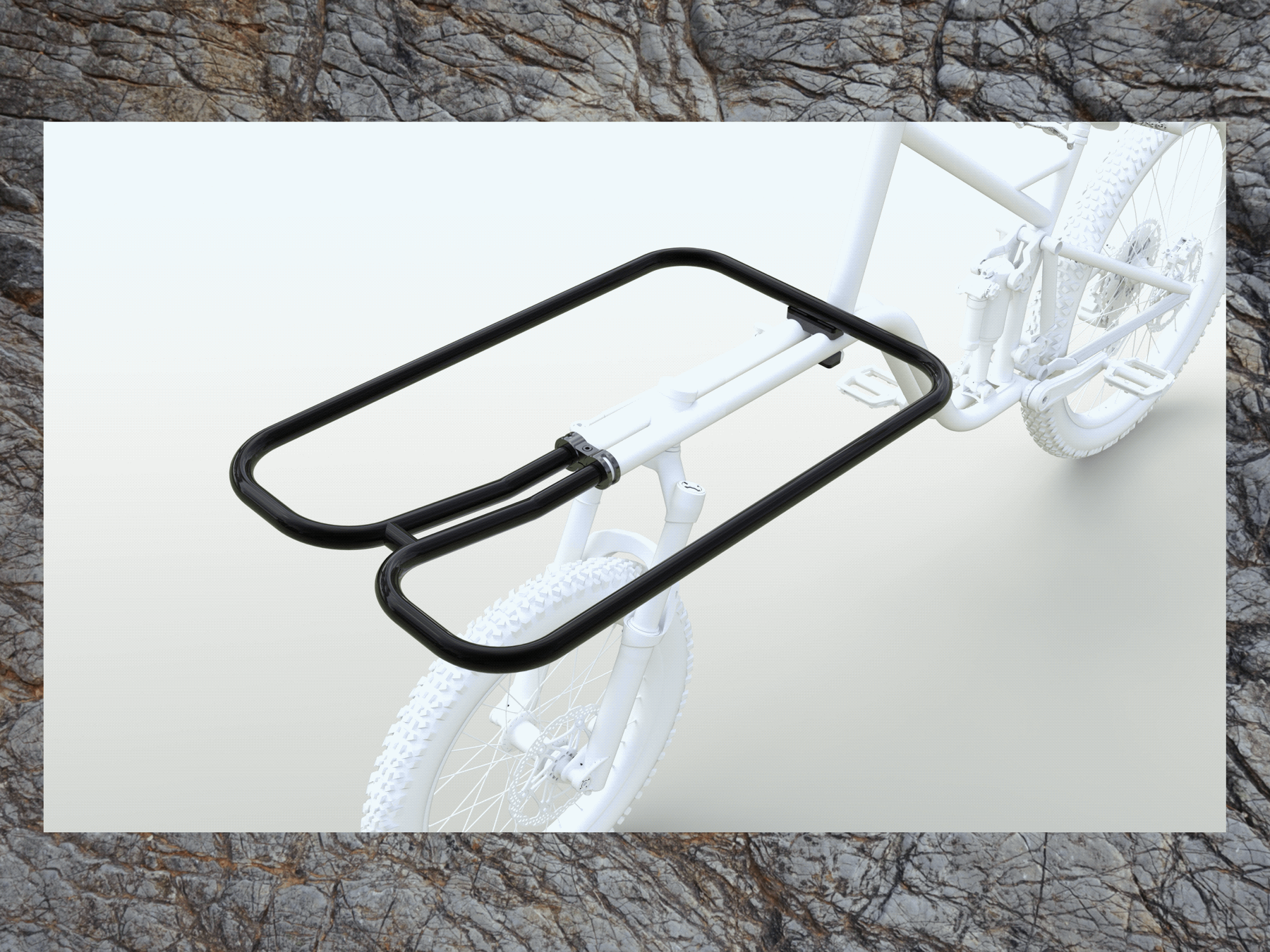

CHK-CHK

IS THE SOUND A PUMP ACTION DOUBLE BARRELLED SHOTGUN MAKES WHEN YOU LOAD IT. THIS IS NOT A SHOTGUN BUT IT DOES HAVE TWO TUBES AND A NICE EASY LOAD SYSTEM.
THERE is ONLY TWO 5MM HEX HEAD BOLTS FOR THE DOUBLE TUBE CLAMPS. SIMPLY UNDO THEM AND SLIDE THE RACK OFF. YOU CAN also slide it on into a sideways stowed position for easier storage.

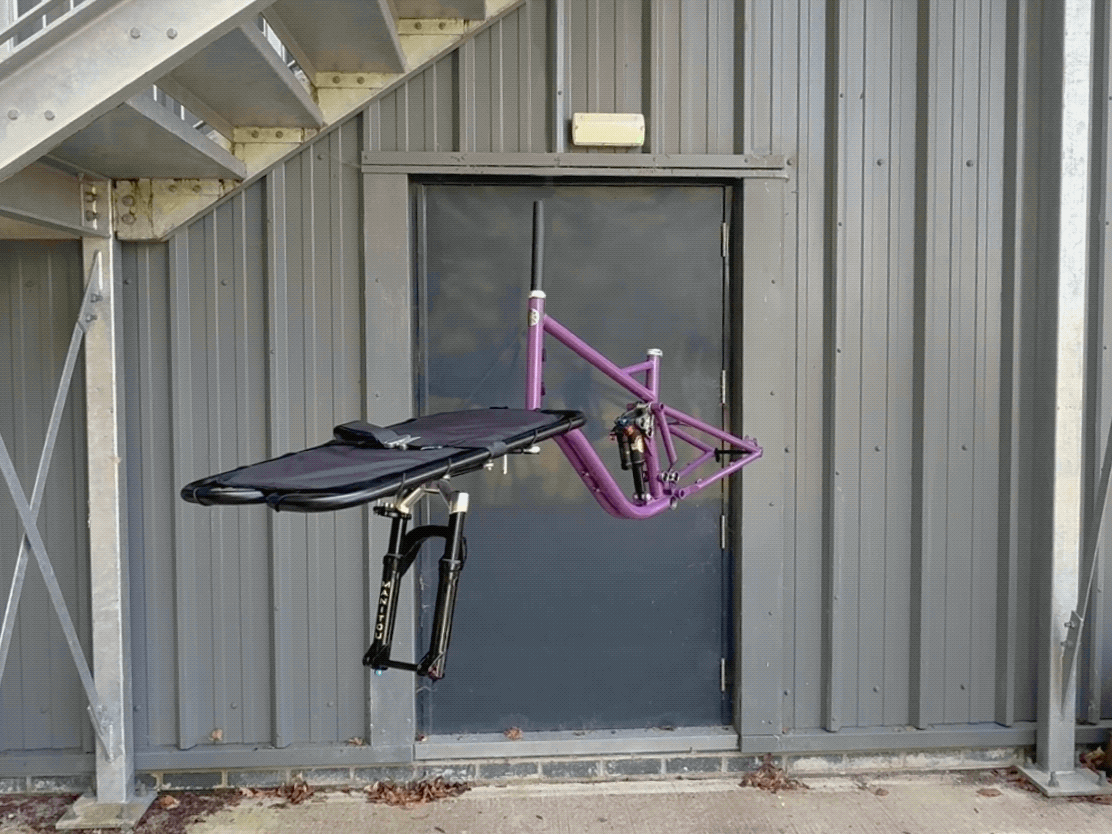

Frame only option

Want to build your own? No problem. Our frame set only option comes with either pro or comp level manitou suspension.
  • GRIFFYN

WE'RE CURRENTLY TAKING ORDERS FOR THE NEXT BATCH (ETA Nov 2026)

CLICK HERE TO PAY A £99 DEPOSIT

£4.640,83 GBP
Configuration:
Wheelbase:
Fork & Shock:

  • A blend of Reynolds 631 and 4130 CroMo, carefully balancing strength and weight for optimal performance

  • The rack is 500mm wide and 775mm long.

    • Fits through doorways
    • Easily removable
    • Tiltable for storage (see the GIF above)

  • All frames come with our custom cargo pillow. This pad contains 10mm thick 3D foam for extra cushioning, and made from durable and waterproof 1000D Cordura.

    The tensioning system is simple 550 Paracord, which can be woven through the loops however you want, and which can also be easily re-tensioned if it becomes baggy over time.

    A Sentient Strap is included also. This is a 3m long strap made from Mil-Spec 50mm webbing and a truly unbeatable Austi-Alpin COBRA buckle. We keep them in stock with Silver and Black buckles, so you can pick which colour you prefer.

  • Designed around a Manitou J-Unit fork with 120mm travel (internally adjustable down to 100mm).

    Available in two versions: PRO or COMP.

  • 165mm of progressive linear travel driven by our take on the trusted DW linkage platform.

  • 30.9mm internal diameter with maximum insertion length of 226mm

  • Front is a 44mm ID, for ZS44 upper and EC44 lower.

    Middle is 34mm ID, for EC34 conventional cups.

  • BSA 73mm Threaded

    When picking a crankset, remember the frame is designed for the standard BOOST chainline of 55mm.

    Clearance for up to 38t chainring.

  • Rear is 148x12mm BOOST with an I.S. Mount

    Front is 110x15mm BOOST with a 160mm Post Mount

    Conventional mech hanger is standard, but we can offer UDH dropouts instead upon request.

    NOTE: As this is a welded component, you can't change from a regular hanger to UDH without getting a new swingarm.

  • The 20" fork will accept up to an 80mm tyre (20 x 3.15") if you can find one! We designed it around a 61mm (20 x 2.4") tyre.

    The rear swingarm will accept a wide range of options, but it was designed around:

    • 27.5 x 2.6" for the SWB
    • 29 x 2.4" for the LWB

PAINT

  • Powder coated at our local specialist
  • 100+ options (Plain RAL, BS 381 C, BS 4800, Metallic, Stealth etc.)
  • Pricing for custom paint varies from FREE to +£200
  • Colour selection is done at the consultation phase, with another chance to change your mind before the frame is sent for paint.

COMPLETE BIKE PARTS LIST

  • Hope Pro 5 hubs laced onto DT Swiss U663 rims, with double butted Pillar spokes.

    Tubeless ready. 32 holes. Eyelets. Extremely durable.

  • Maxxis Minion DHF Front 20x2.4" with a Schwalbe SV7 Air Plus inner tube

    Maxxis Rekon 3C MaxxTerra EXO+ Tubeless Rear set up Tubeless with Orange Seal Endurance sealant

    • Short - 27.5 x 2.6"
    • Long - 29 x 2.4"

  • Shimano M6200 Deore 12 speed

    • 10-51t Cassette
    • 165mm Crank
    • Short with 27.5" tyre - 32t Chainring
    • Long with 29" tyre - 30t Chainring

  • Shimano M6220 Deore 4-Pot with 203mm Rotors F+R

  • KS e20i + Southpaw lever

    • 150mm drop
    • integrated Shimano I-Spec-EV lever mount

  • Ergon SM Mens saddle (M/L) - Black

    Ergon GS Grips (Regular) - Black

    HT PA12 Pedals - Black

  • Adventure Handlebar

    • 800mm wide
    • 27 degree backsweep
    • 15mm rise
    • Matt Black (unbranded)

    Generic 80mm Stem

    • 31.8mm Clamp
    • Matt Black (Unbranded)

FULL CUSTOM BUILD

If you want to pick your hubs, rims, tyres, drivetrain, brakes, cockpit etc. then you are welcome to do so.

We can source almost anything that is available, and advise about suitability, compatibility etc.

A custom build can be just a tweaked version of our "base level" build, or you can tear up the part list and start from scratch.

FAQs

  • Anyone who’s ridden an Omnium Cargo (or similar) off-road knows the kickstand will strike rocks and roots when you don't want it to. Most of the time it’s just rattling along, adding extra weight, and waiting to get caught on something.

    We’re still trying to figure out a custom kickstand that actually works for this bike, but we aren't there yet. Until we find a solution that we are happy with, you’ll have to find something to lean it against.

  • Our friend Patch will help you out.

    He is taking orders for custom bags, feed bags, frame bags, and top tube protectors for the Sentient Griffyn.

    If you get in touch with him then you can arrange for the bags to be shipped with the frame, as he is local to us (25miles away) and is happy to drop stuff off with us to help save you some shipping costs.

    https://collinscycleworks.uk/

  • No, you cannot carry a child on the front.

    The payload limit is 40kg, but this is not the only consideration. Before even thinking about carrying a child on the front please bear in mind the following:

    • The bike was not designed for this purpose.
    • Child seats are not compatible with the rack.
    • Retention systems of any kind are not recommended as crashing the bike is always going to be bad news for a passenger.

    You have been warned!

  • Yes, but follow these guidelines:

    Seek Consent: Not all dogs enjoy riding on the bike. The dogs in our marketing sometimes don't want to be passengers even if it may appear otherwise.

    Never Force or Strap: Do not use retention systems or force a dog to stay. If they can’t ride unrestrained, they aren’t ready.

    Be Patient: Training takes time and a smooth, calm rider. Never rush the process just to hit a schedule.

    Ride Smoothly & Slowly: Erratic movements, steep lean angles in corners, and emergency braking will throw the dog off the bike and can easily result in severe injury or death.

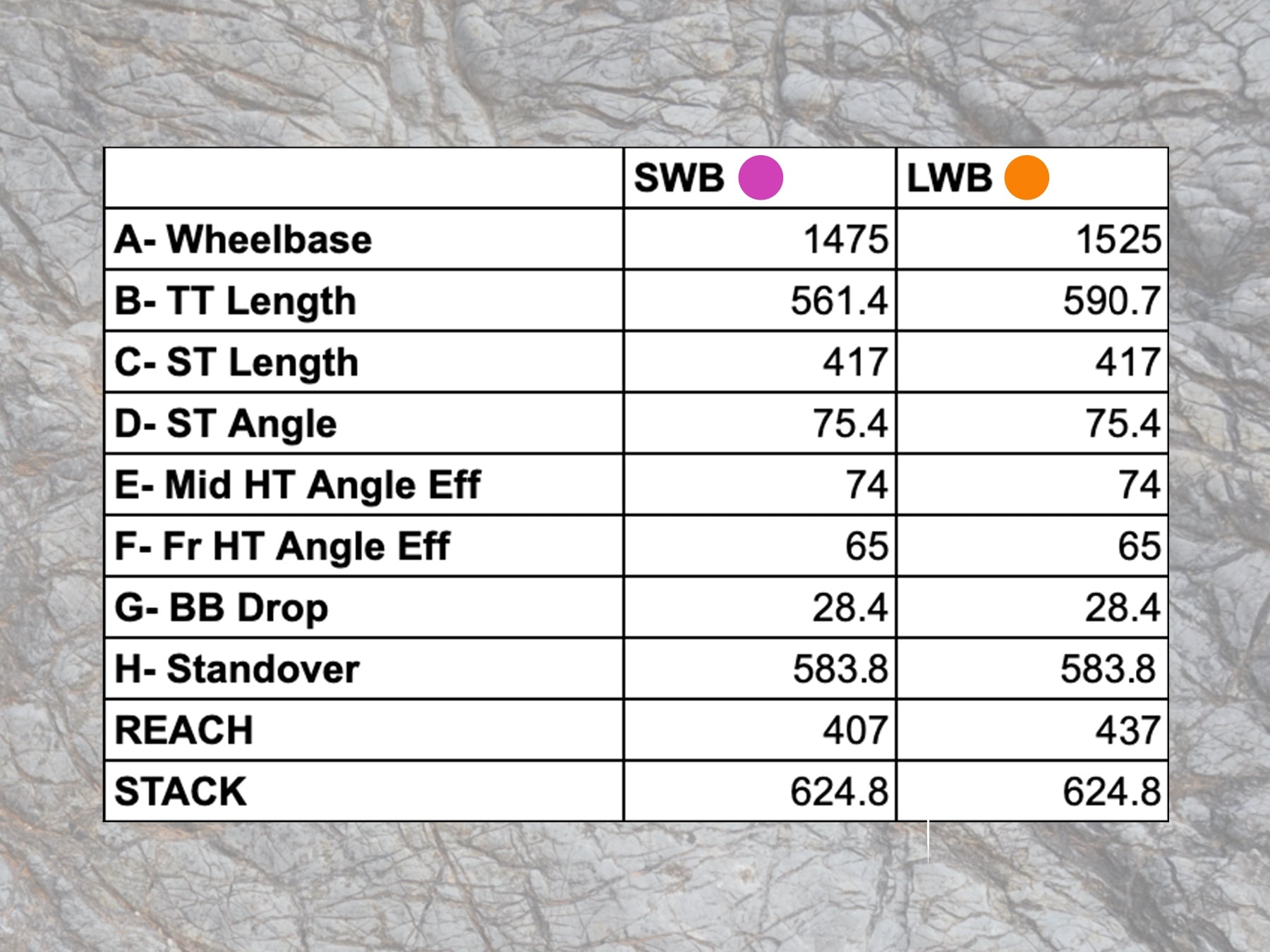

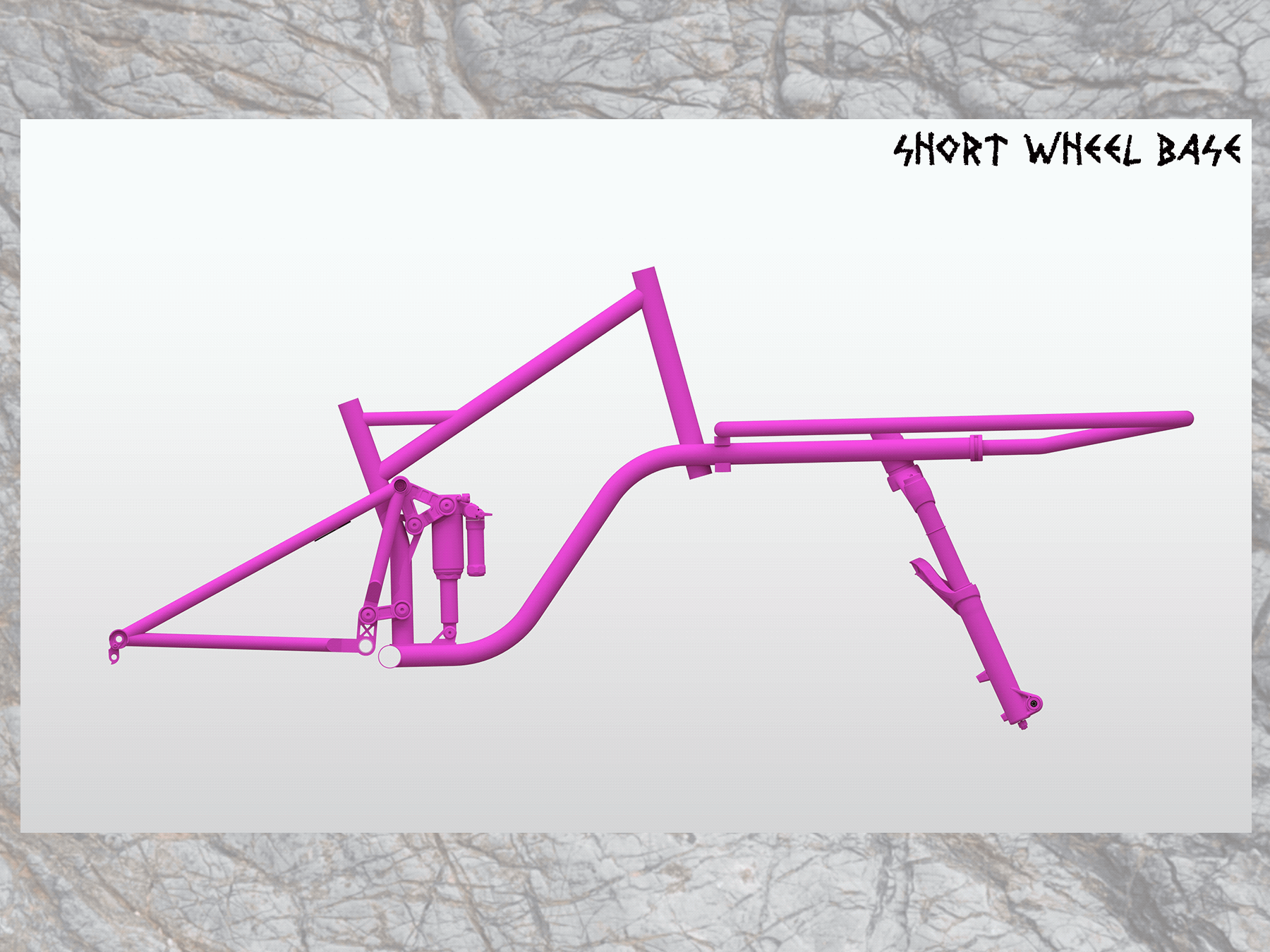

  • The short wheelbase bike is designed for riders between 5'6" (167cm) to 5'10" (178cm).

    The long wheelbase bike is designed for riders between 5'10" (178cm) and 6'2" (188cm).

    The short wheelbase bike was designed around a 27.5 x 2.6" rear tyre, and the long wheelbase was designed around a 29 x 2.40" rear tyre.

    So although you are welcome to do whatever you want, please consult with us about bike fit during the consultation stage of ordering.
